SikaShield P34 S 4mm

SikaBit® PRO P-40-0 Sand

PLASTOMERIC MODIFIED BITUMINOUS WATERPROOFING MEMBRANE

DESCRIPTION

SikaBit® PRO P-40-0 Sand is an APP modified, bitumin-
ous, torch-applied, waterproofing membrane. It is re-
inforced with a dimensionally stable non-woven poly-
ester inlay. The underside has a thin polyethylene

burn-off film for easy application. It can be applied to
wood, metal and concrete substrates including over

existing bitumen roofing membranes. Top surface fin-
ish: sand. Thickness: ~4,0 mm

USES
Waterproofing membrane for:
Damp proofing of the exterior walls of basements
against percolating water and damp soil
▪
▪ Flat roofs under protective layers or ballast
▪ Balconies and terraces under tiles
▪ Wet areas
Protection of various substrates in a wide range of
applications
▪

CHARACTERISTICS / ADVANTAGES
▪ Good watertightness
▪ Good elongation and cold flexibility
▪ Good mechanical properties (tensile, tear, shear)
▪ Good resistance to impact

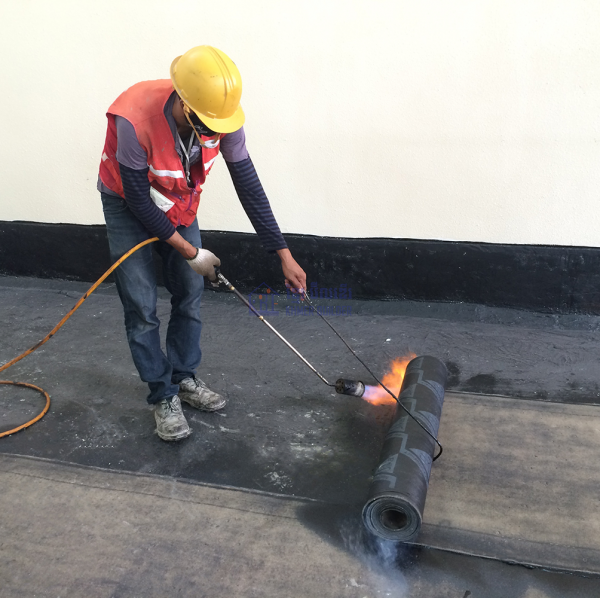

▪ Easy to install by torching method

Choice of primers to suit substrate and weather con-
ditions

▪

PRODUCT INFORMATION
Composition APP modified bitumen
Reinforcing Material Non-woven polyester fabric

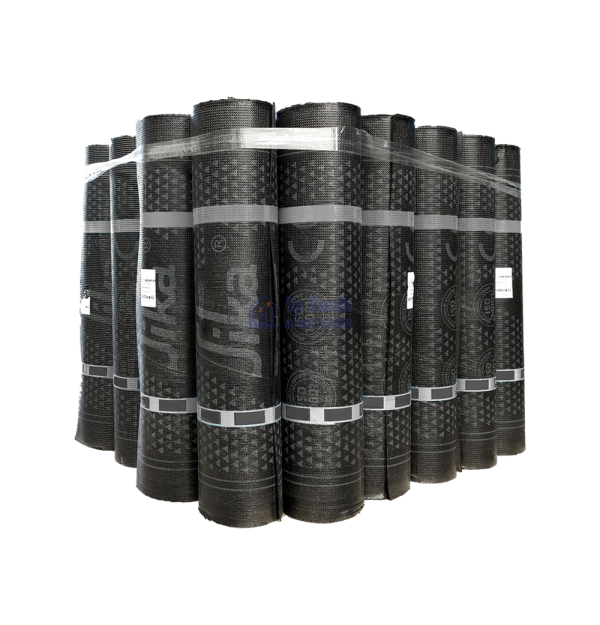

Packaging Roll size

Length 10,00 m
Width 1,00 m
Appearance / Colour Top surface Sand

Backing Polyethylene film

Shelf life 12 months from date of production

Product must be stored in original unopened and undamaged sealed pack-
aging in dry conditions and temperatures between +5 °C and +35 °C. Store

in a vertical position. Do not stack pallets of the rolls on top of each other,
or under pallets of any other materials during transport or storage. Always

Storage conditions

1 / 3

refer to packaging.

Length 10 m
Width 1 m
Effective Thickness 4,0 mm ± 5 % (EN 1849-1)
TECHNICAL INFORMATION
Resistance to Impact ≥ 600 mm at +23 °C (EN 12691- Method A)
Tensile Strength Longitudinal 600 N/50 mm ± 20 %
Transversal 400 N/50 mm ± 20 %

(EN12311-1)

Elongation Longitudinal 30 % ± 15 %
Transversal 30 % ± 15 %

(EN12311-1)

Tear Strength Longitudinal 150 N ± 30 %
Transversal 150 N ± 30 %

(EN 12310-1)

Joint Shear Resistance Longitudinal Min. 500 N/50mm
Transversal Min. 350 N/50mm

(EN 12317-1)
Flow Resistance ≥ 120 °C (EN 1110)
Watertightness 60 kPa (EN 1928-Method B)
